Plaats van herkomst:
China
Merknaam:
XYZK
Modelnummer:
3351 CDY
Range and range
|
Range code |
Minimum range |
Maximum range |
Rated pressure (maximum value) |
|
B |
1 kPa |
6 kPa |
Rated pressure of liquid level flange |
|
C |
6 kPa |
40 kPa |
|
|
D |
40 kPa |
400 kPa |
|
|
E |
400 kPa |
4 MPa |
Relationship between liquid level flange and minimum range
|
Liquid level flange |
nominal diameter |
Minimum range |
|
|
One-sided long-distance transmission |
Bilateral remote transmission |
||
|
flat membrane |
DN 50/2" |
10 kPa |
10 kPa |
|
DN 80/3" |
6 kPa |
1 kPa |
|
|
DN 4" |
6 kPa |
1 kPa |
|
|
Plug type |
DN 50/2" |
10 kPa |
10 kPa |
|
DN 80/2" |
6 kPa |
1 kPa |
|
|
DN 4" |
6 kPa |
1 kPa |
|
Level flange rated pressure
PN series : PN 2.5 ~ PN 160
Class series: Class 150 ~ Class 250 0
Unidirectional overload limit
overload limits on the high and low pressure sides are the rated pressure of the liquid level flange , and correctable zero-point drift may occur .
Product Dimensions

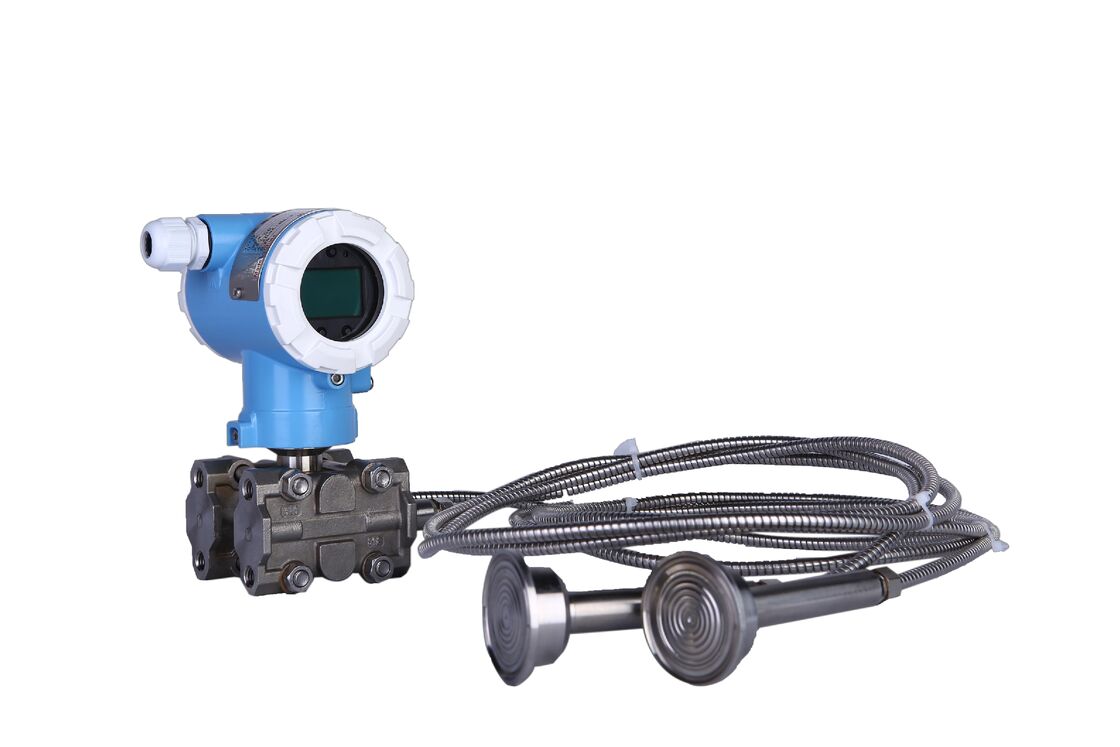

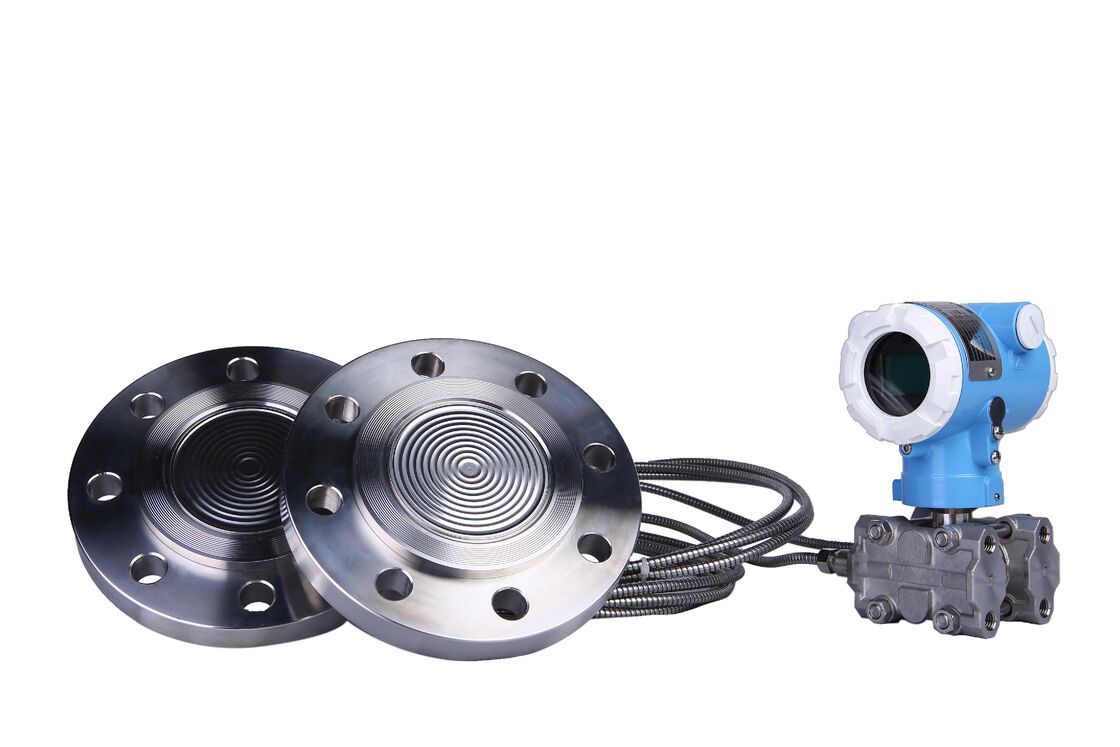

The YC 3351 series intelligent pressure/absolute pressure transmitter uses a globally leading central sensing unit . High-precision silicon pressure sensor technology and packaging process; single-crystal silicon pressure sensor located in metal body. At the very top, away from the medium contact surface, mechanical and thermal isolation are achieved; the glass is sintered into a single unit for transmission. The sensor leads achieve high-strength electrical insulation from the metal substrate, improving the flexibility of the electronic circuitry. Performance and transient voltage protection capability. Minimal temperature variation, optimally controllable within ± 0.04 %/ 10 K.
The circuit design employs a microprocessor-based core, supplemented by advanced digital isolation technology. Its modular design gives the instrument extremely high anti-interference capability and stability. It uses the HART protocol. Communication can be completed remotely via a Hart handheld device or a computer with Hart software installed, enabling measurement. Information configuration is implemented, digital compensation technology is employed, and the transmitter is monitored via a built-in temperature sensor. Linear compensation improves measurement accuracy, reduces temperature drift, and exhibits good long-term stability and reliability . Advanced features. The external one-button reset function is designed for maximum user-friendliness, ensuring safe operation in hazardous environments. Requirements: A quick-access menu facilitates operation and allows for complete parameter settings, comprehensively enhancing the transmitter's performance . performance.
Advantages
A high-performance pressure and level transmitter with internationally leading technology, meticulously developed using advanced single-crystal silicon pressure sensor technology and packaging processes.
with a microprocessor at its core and supplemented by advanced digital isolation technology, gives the instrument extremely high anti-interference capability and stability.
High-performance 24-bit ADC achieves high precision
Innovative dual compensation technology achieves true 0.075 high precision
Functional parameters
|
Range Limit |
Within the upper and lower limits of the measuring range, it can be adjusted arbitrarily. It is recommended to choose a range code with the lowest possible range ratio to optimize performance. |
|
Zero point setting |
The zero point and range can be adjusted to any value within the measurement range of the table, as long as: the calibrated range ≥ the minimum range. |
|
Installation location affects |
to the diaphragm surface will not cause zero drift. However, if the installation position is more than 90° to the diaphragm surface... Changes There will be a zero-point effect within the range of <0.4 kPa , which can be corrected by adjusting the zero adjustment. There is no range effect. |
|
Output |
Two- wire 4-20 mA , NAMIR compliant NE 43 specification, superimposed digital signals ( Hart protocol) Linear or square root output can be selected. |
|
Output signal limits |
Imin =3.9 mA , Imax =21.0 mA |
|
Fault warning |
If a sensor or circuit malfunctions, the automatic diagnostic function will automatically output 3.9 or 21.0 mA (user-presettable). |
|
Alarm current |
Low reporting mode (minimum): 3.9 mA |
|
High- reporting mode (maximum) |
21 mA |
|
Alarm current default setting |
High reporting mode |
|
Response time |
the amplifier component is 0.1 s ; the time constant of the sensor is 0.1 ~ 1.6 s , depending on the range and range ratio. The additional adjustable time constant is : 0 ~ 100s |
|
preheating time |
< 15 s |
Performance Parameters
Measurement media: gas, steam, liquid
Inaccuracy : ±0.1% (including linearity, hysteresis, and repeatability from zero)
Stability : ±0.2%/3 years
Effect of ambient temperature: ≤±0.05% URL /10 ℃
Power supply : 10 ~ 36 V DC (Recommended 24V ) DC )
Power supply effect: ± 0.001% / 10 V (10 ~ 36 V) DC ), which is negligible.
Reference accuracy for range adjustment : If TD > 10 ( TD = maximum range / adjustment range), then it is: ±(0.075 × TD )%
Ambient temperature: -20℃ ~ 85℃
Measuring medium temperature: -20 ℃ ~150℃
Storage temperature: -20℃ ~ 105℃
Display : LCD
Display module temperature: -20℃ ~ 70℃
