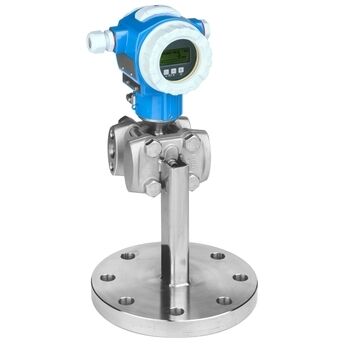

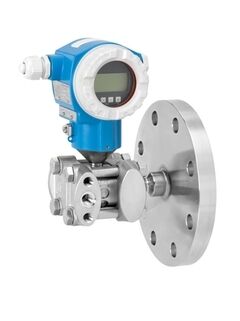

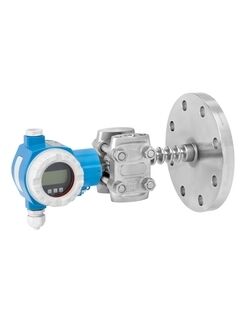

Deltabar FMD77 — Introduction
The Deltabar FMD77 from Endress+Hauser is a high-performance differential pressure (DP) transmitter specifically designed for level measurement in pressurized and vacuum tanks. It uses electronic differential pressure technology, which replaces traditional capillary-based systems and eliminates many of their limitations.
Unlike classic DP systems with long oil-filled capillaries, the FMD77 uses two separate sensor modules connected electronically, resulting in higher accuracy, faster response, and dramatically reduced temperature influence.
Key Features
1. Electronic Differential Pressure (eDP) Technology
2. Designed for Pressurized & Vacuum Tanks
3. Robust & Maintenance-Friendly
4. Excellent Temperature Performance
5. HART, Profibus, Foundation Fieldbus Options
Typical Applications
The Deltabar FMD77 is optimized for:
Level Measurement in:
Technical Highlights (At a Glance)
|
Parameter |
Typical Range |
|
Measuring principle |
Electronic differential pressure |
|
Applications |
Level, volume, density |
|
Measuring range |
Depending on sensor module (often up to ±40 mbar to 40 bar differential) |
|
Process temperature |
Wide range depending on diaphragm seal |
|
Process pressure |
Up to several hundred bar (with proper seal) |
|
Accuracy |
High (often ≤ 0.075% of span or better) |
|
Communication |
HART, PROFIBUS PA, FOUNDATION Fieldbus |
|
Safety |
SIL2/SIL3 capable (depending on configuration) |
Why Choose the Deltabar FMD77?
